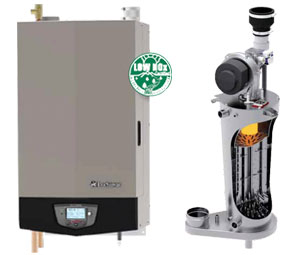

Knight Wall Mount Boiler

KNIGHT WALL MOUNT FIRETUBE BOILER | Featuring a fully welded, water backed, ASME Firetube Heat-Exchanger

The KNIGHT® Wall Mount, engineered with Lochinvar’s exclusive SMART SYSTEM™ control and an array of other innovative features is far ahead of any heating boiler in its class. It promises and delivers ultimate ease of installation and maintenance. With up to 99% thermal efficiency, low-NOx emissions and a fully modulating burner, it is the best ”green choice” for today’s environmentally focused market.

Seven modulating/condensing stainless steel KNIGHT Wall Mount boilers are available with 55,000–399,999 BTU/hr inputs in a space-saving wall-mounted design. All are equipped for direct-vent installation with air intake and exhaust runs up to 100 feet using PVC, CPVC or AL29-4C vent materials. The new KNIGHT Wall Mount Boiler reflects Lochinvar’s constant commitment to providing all the options needed to serve every application.

• All WHN models will have a 5:1 turndown ratio and will be fully modulating.
• The WHN series will feature the recently enhanced Smart System Control with standard features:

  • Multi-Colored Graphical LCD Display
  • Efficiency Optimized Cascade
  • Three Temperature Inputs
  • Variable Speed Boiler Pump Control
  • Multiple Expanded Capabilities for BMS System Integration using a 0-10V Signal

A new optional feature that is now available on all Knight Boilers is MODBUS protocol for two way BMS communication.
